Brimar Radio Valves
and Teletubes

FOR EASY REFERENCE - Whenever Brimar Valves are equivalent to American
types, identical Type Numbers are used.  In the main, this covers all
except English Types.

To view a data sheet click on the relevant title below.
To get back to here from a data sheet, click the Back button.

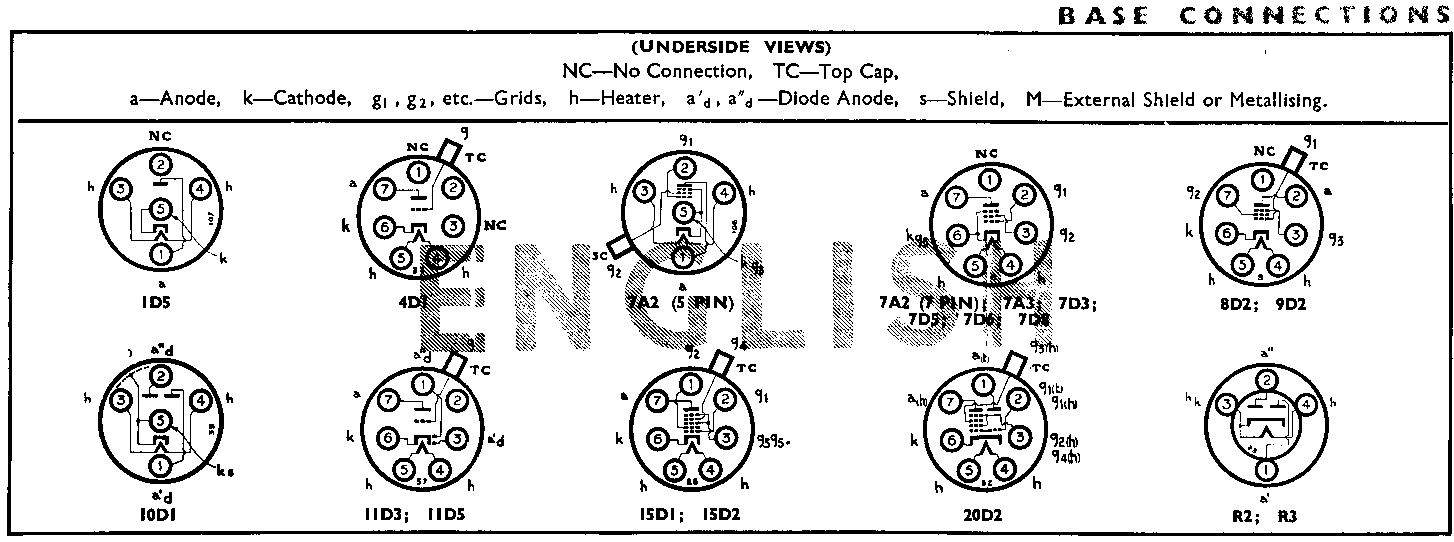

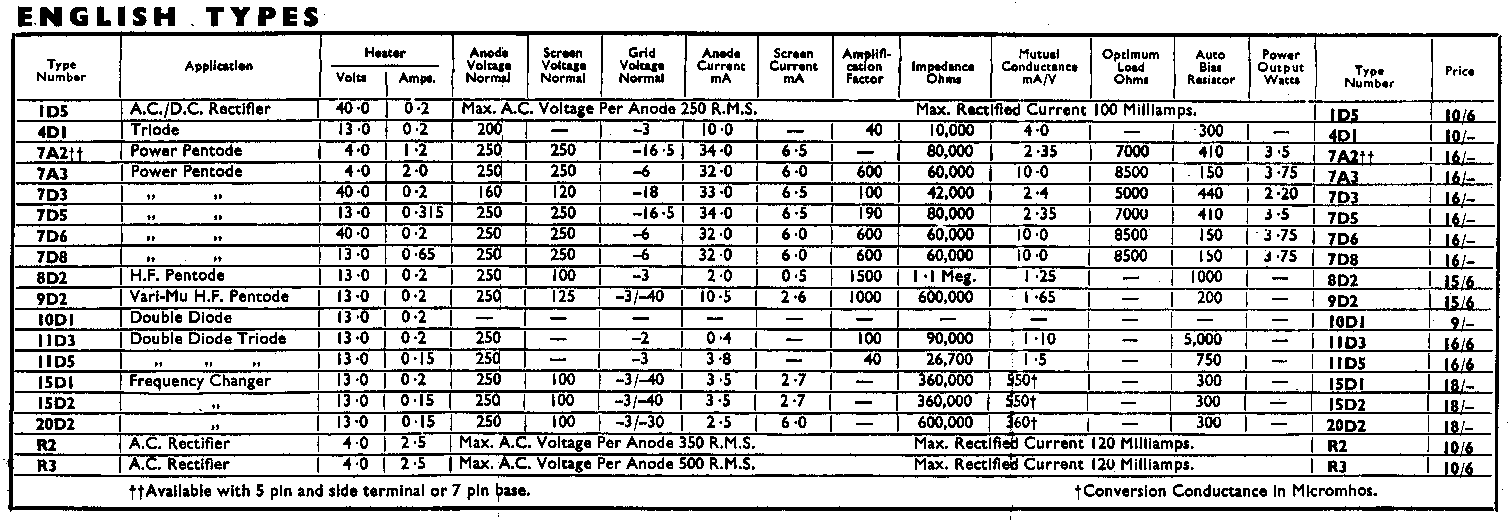

English Valve Data English Valve Bases

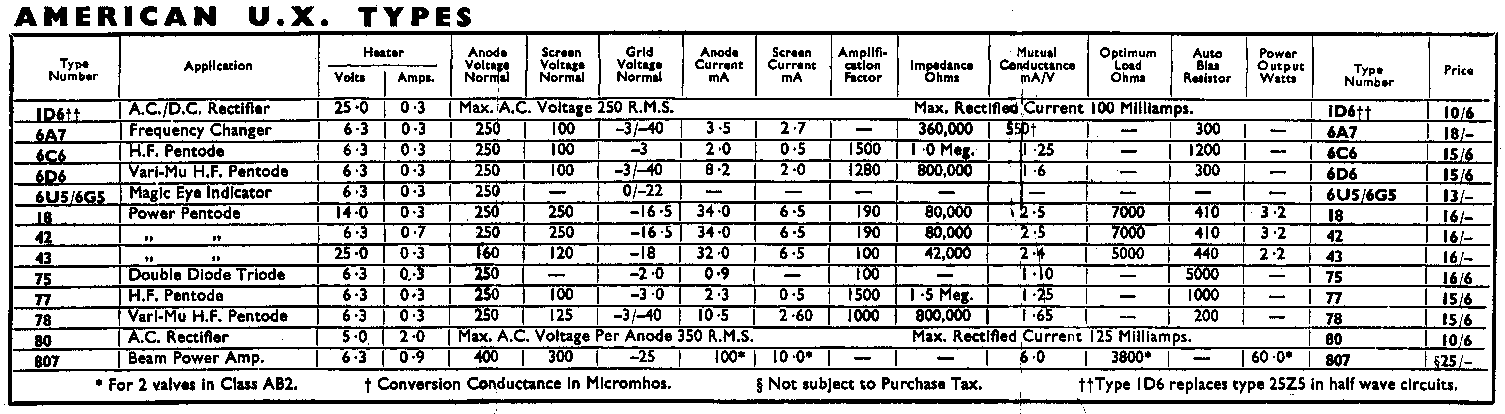

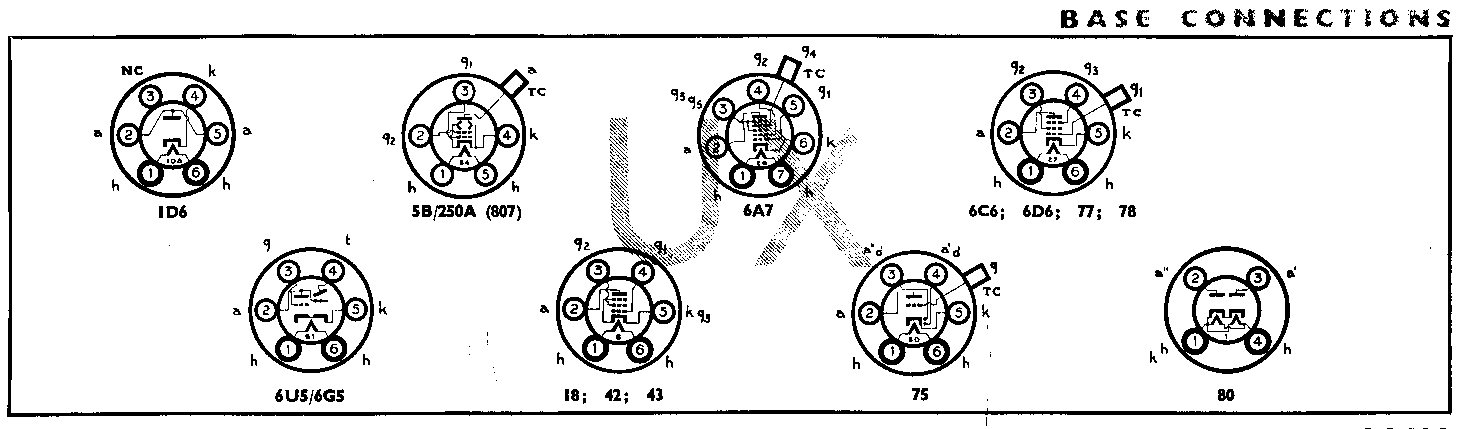

American UX Valve Data American UX Valve Bases

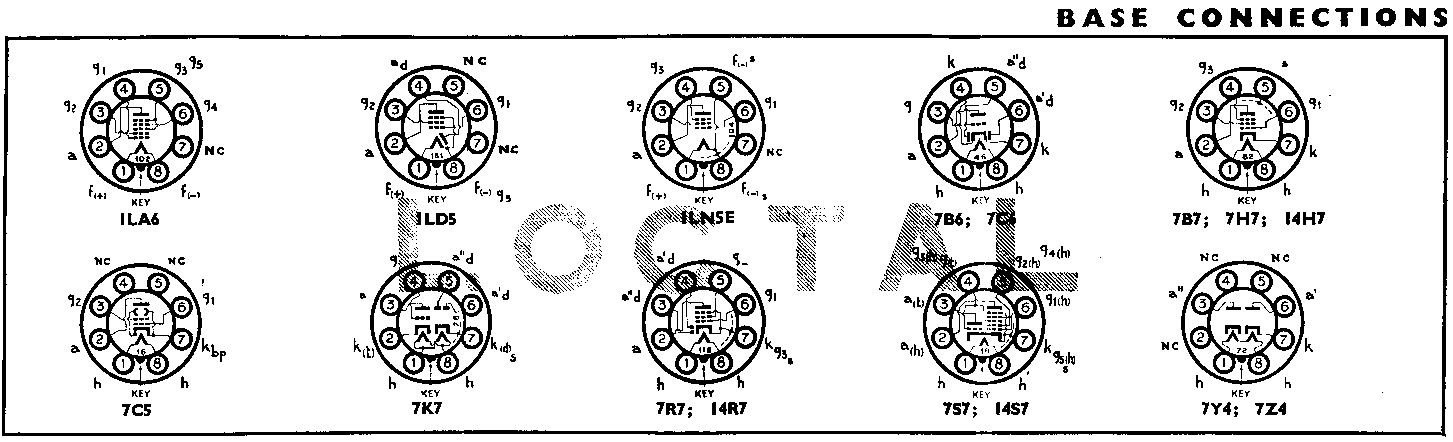

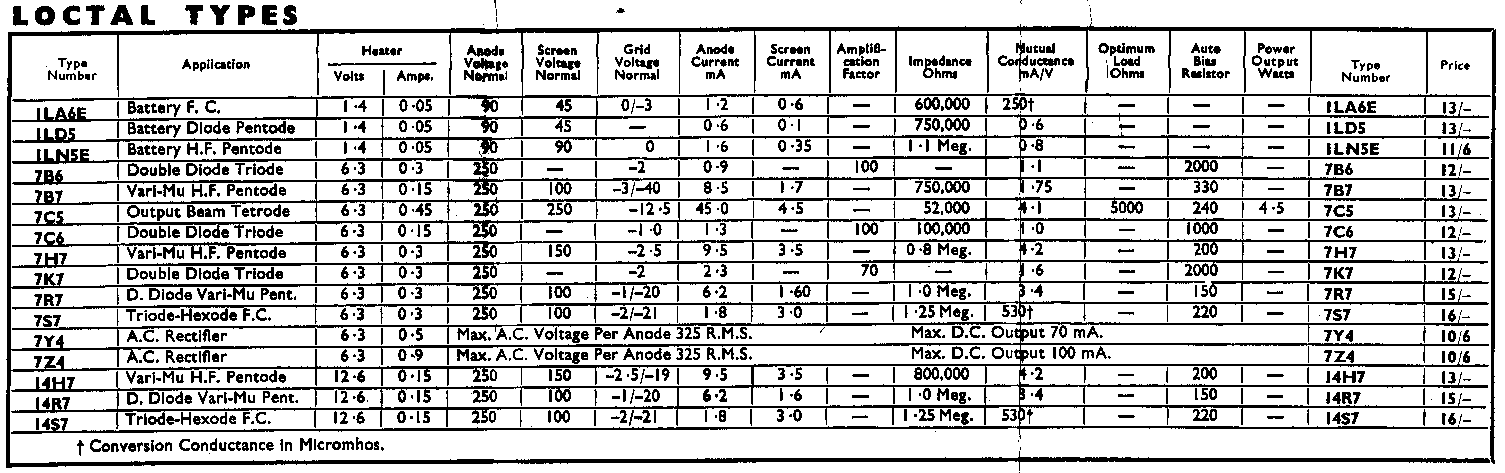

Loctal Valve Data Loctal Valve Bases

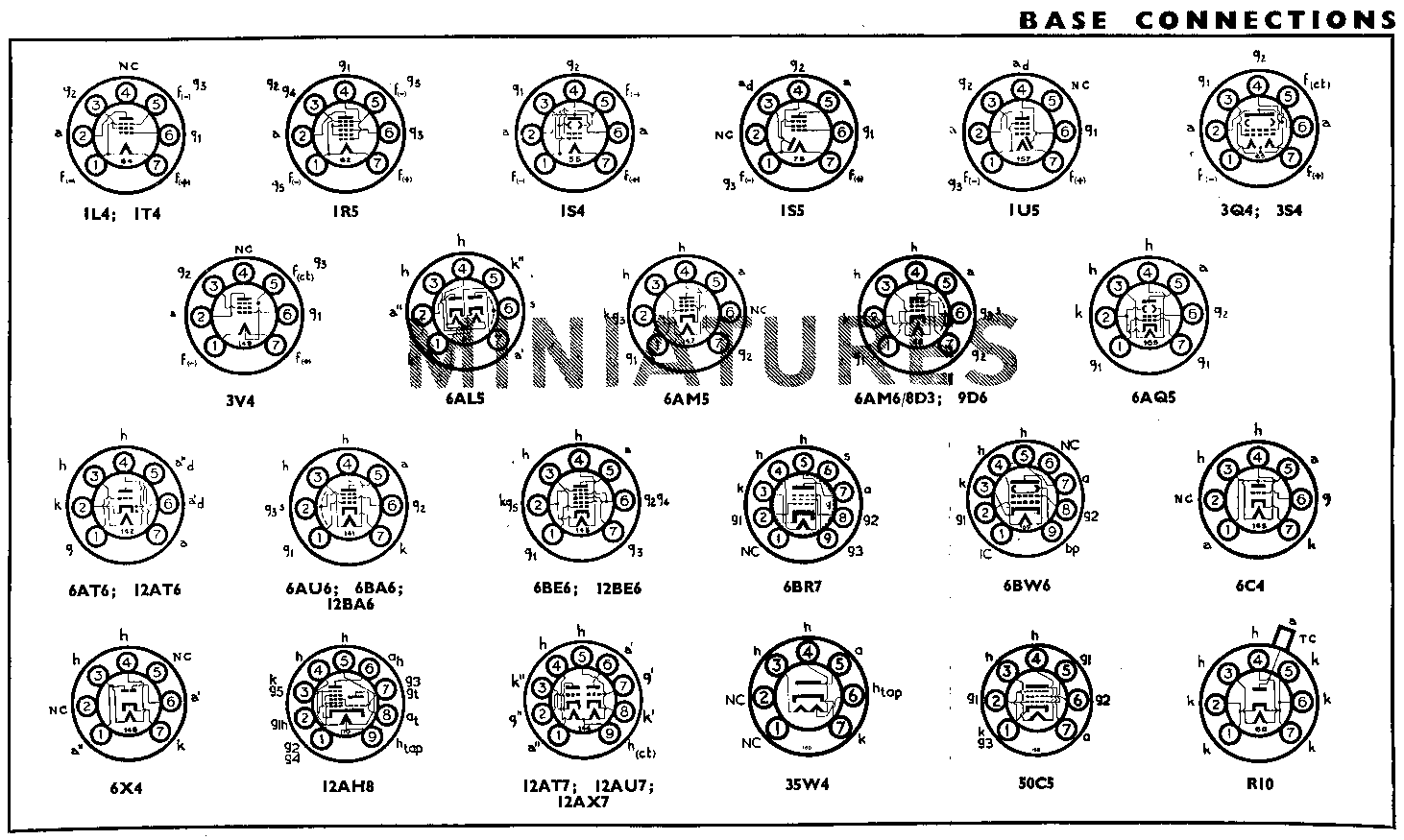

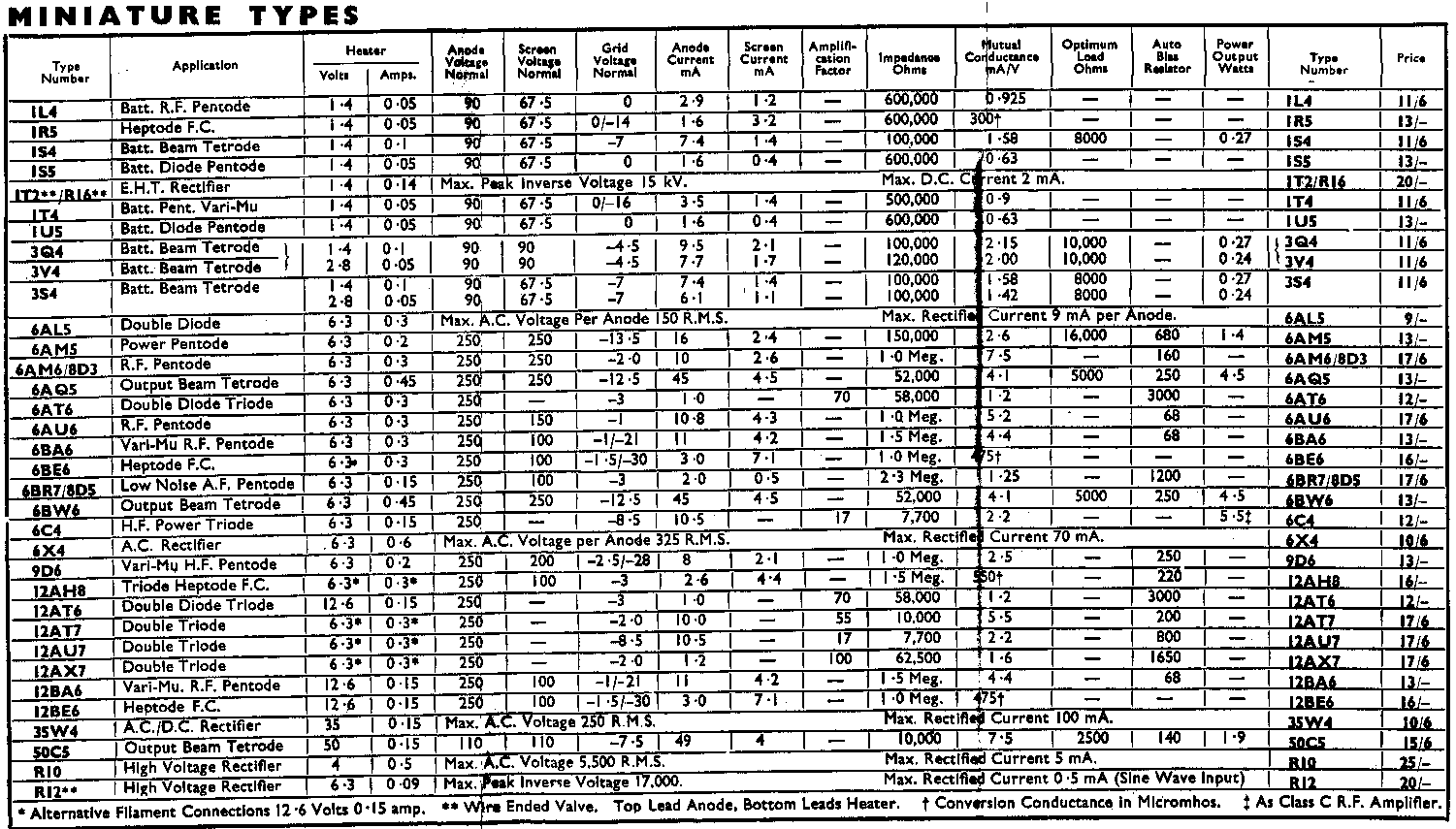

Miniature Valve Data Miniature Valve Bases
Octal Valve Data Octal Valve Bases
Germanium Diode Data
Brimistor Data
Metal Rectifier Data
Teletube Data and Bases
American Valve Equivalents English Valve Equivalents

Back to Main Title Page
