Mains Miniature Range


This booklet deals entirely with miniature valves of the all-glass type,
fitted with International B7G (7-pin) or Noval (9-pin) bases.

They are manufactured to the same specifications as American valves of
similar nomenclature and are thus directly interchangeable with them.

To view a data sheet click on the device type number below.
To get back to here from a data sheet, click the Back button.

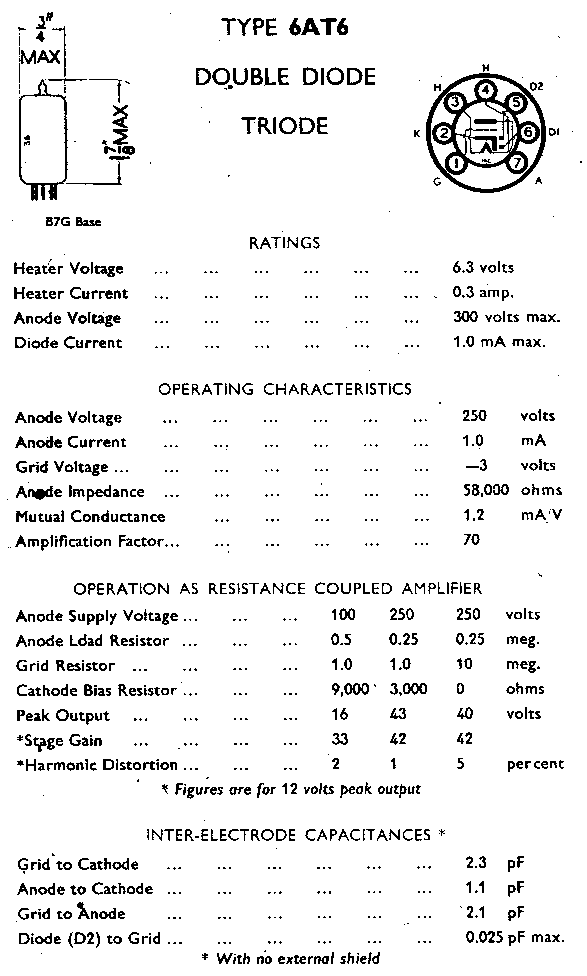

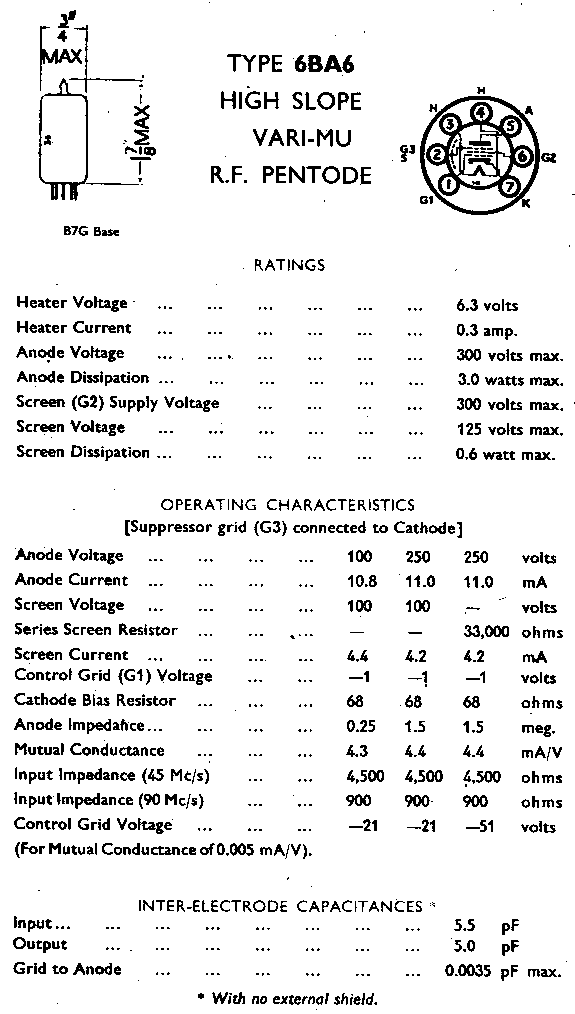

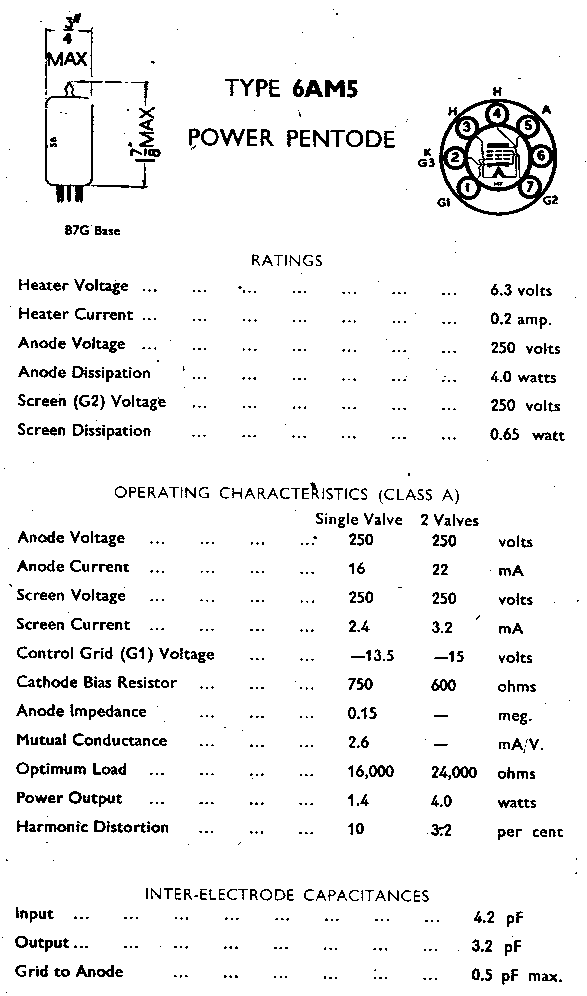

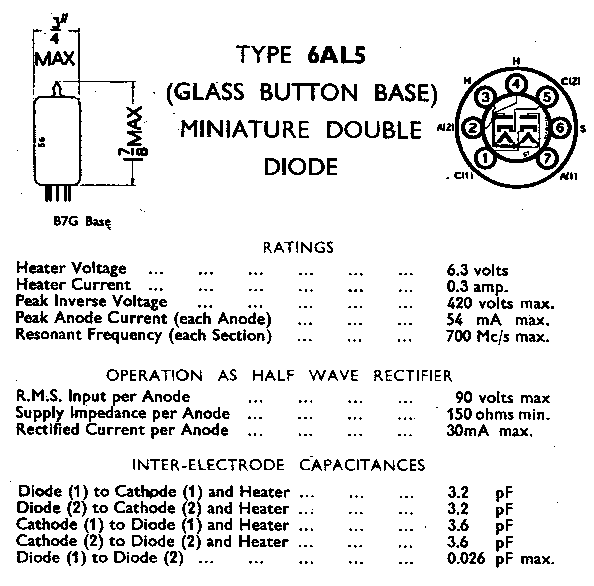

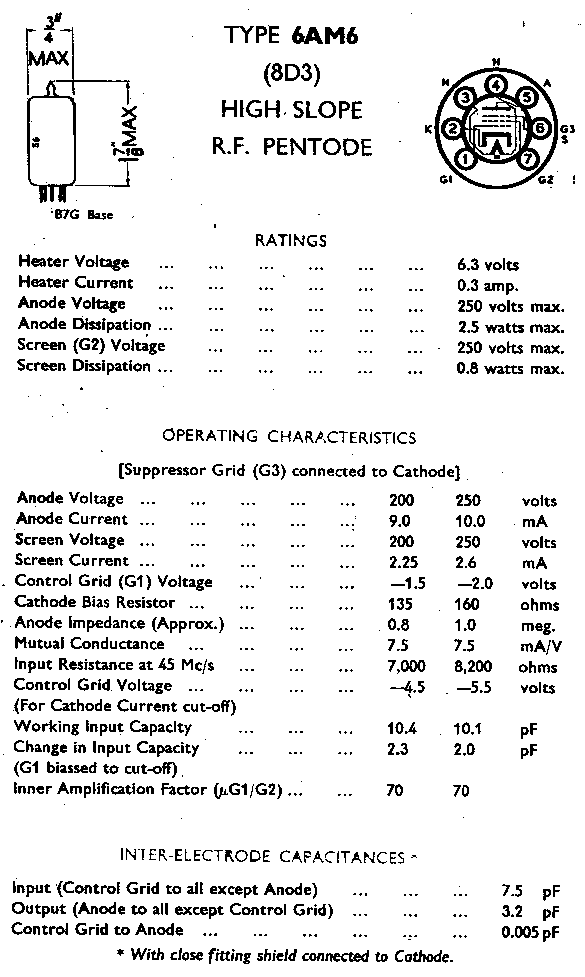

6AL5 6AM5 6AM6 6AT6 6AU6 6BA6

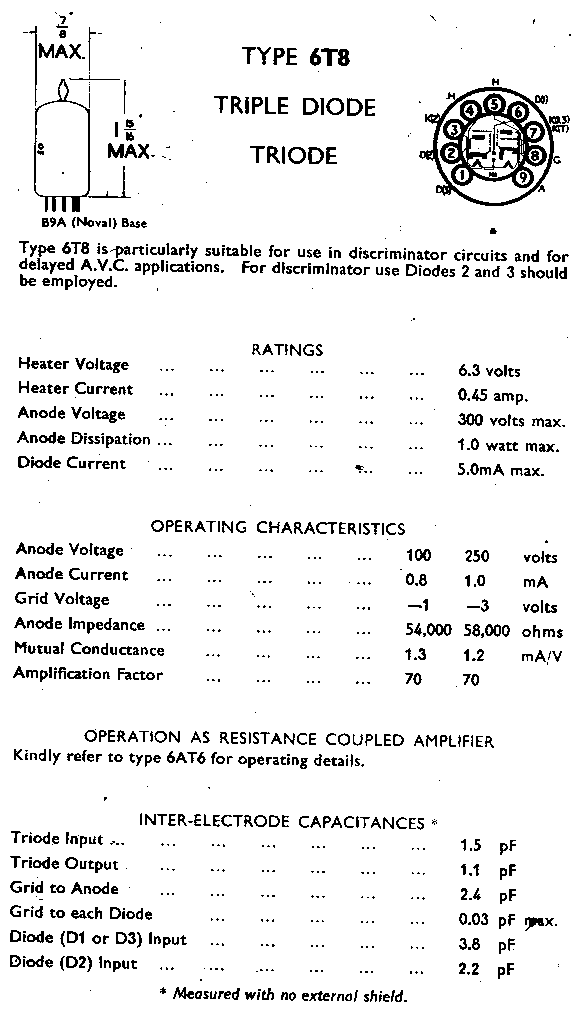

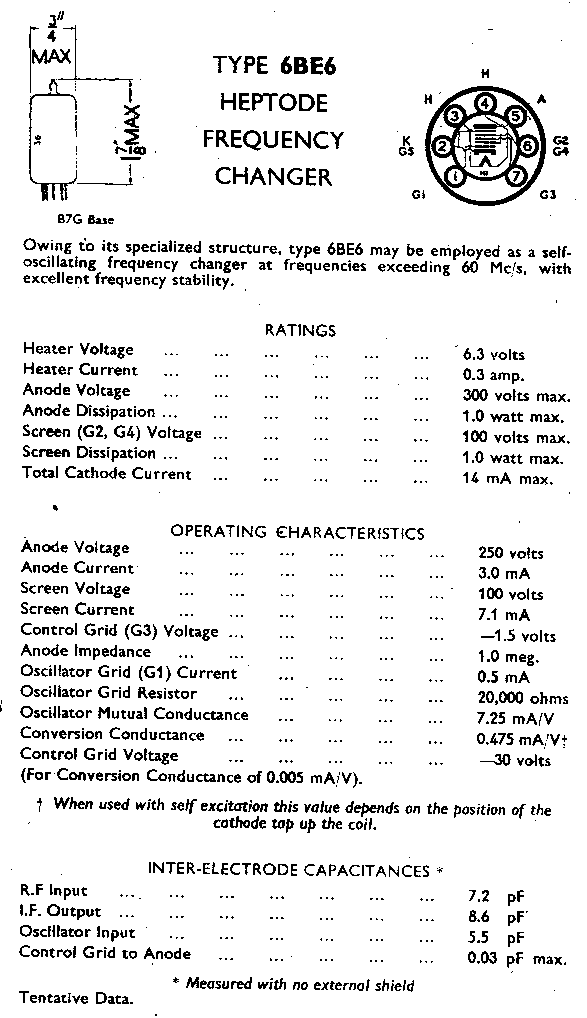

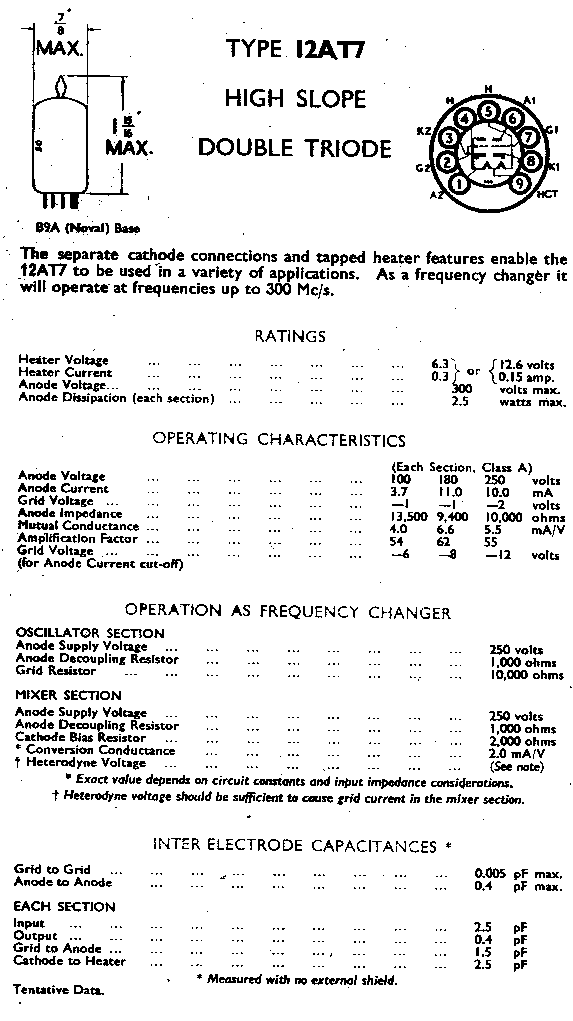

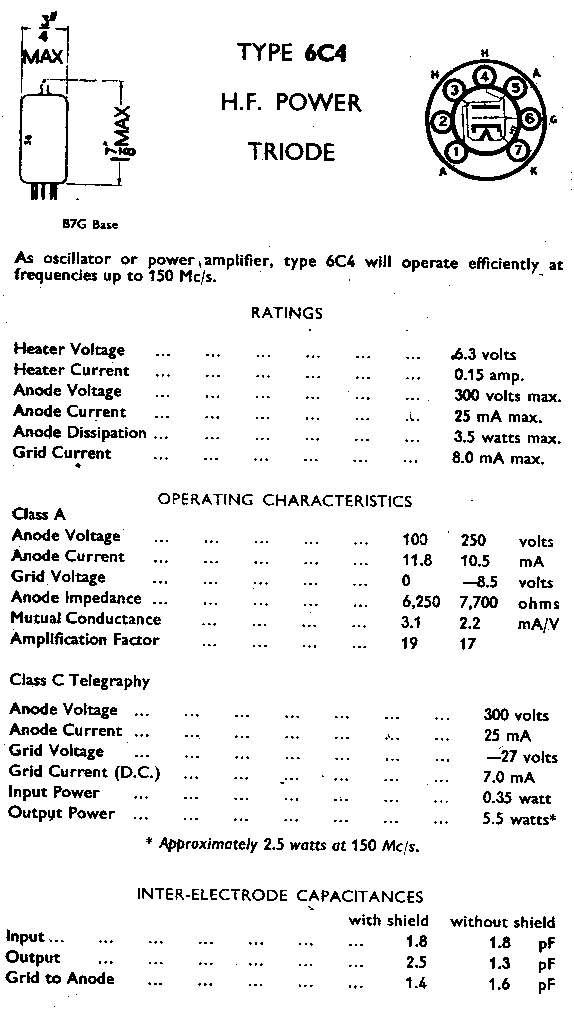

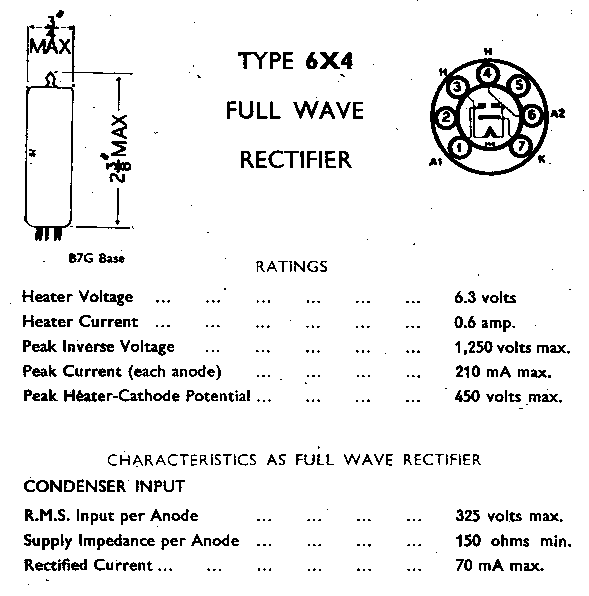

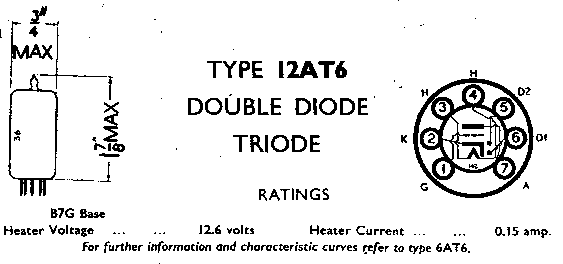

6BE6 6C4 6T8 6X4 12AT6 12AT7

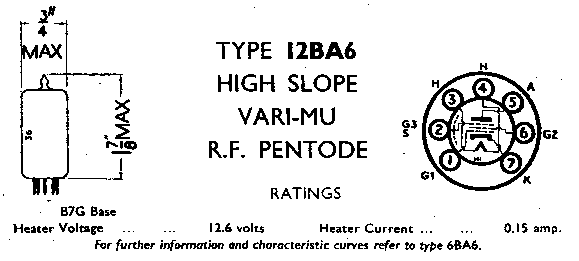

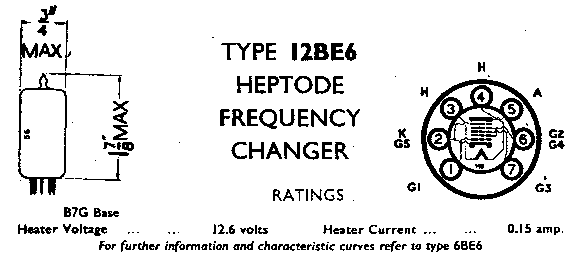

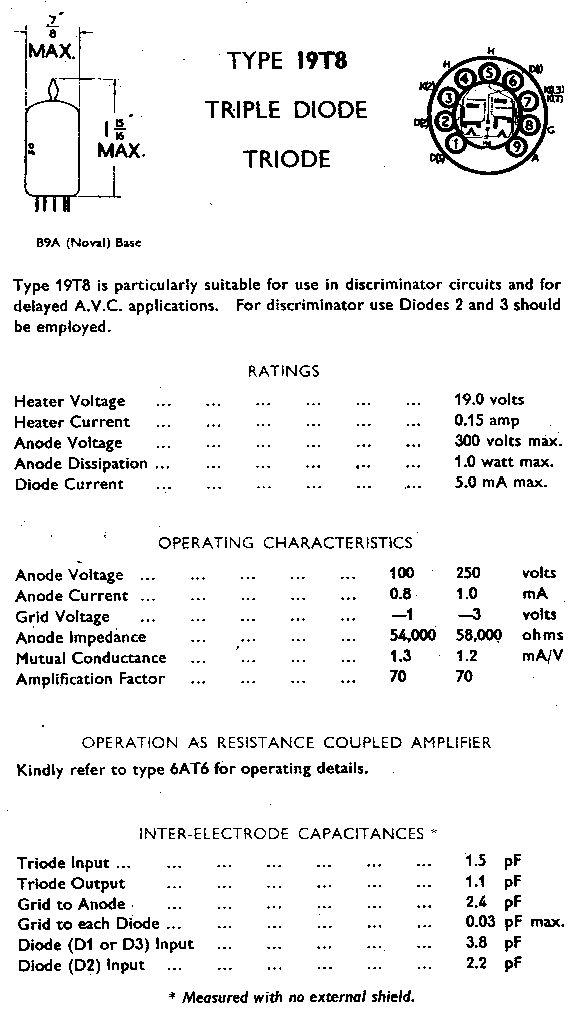

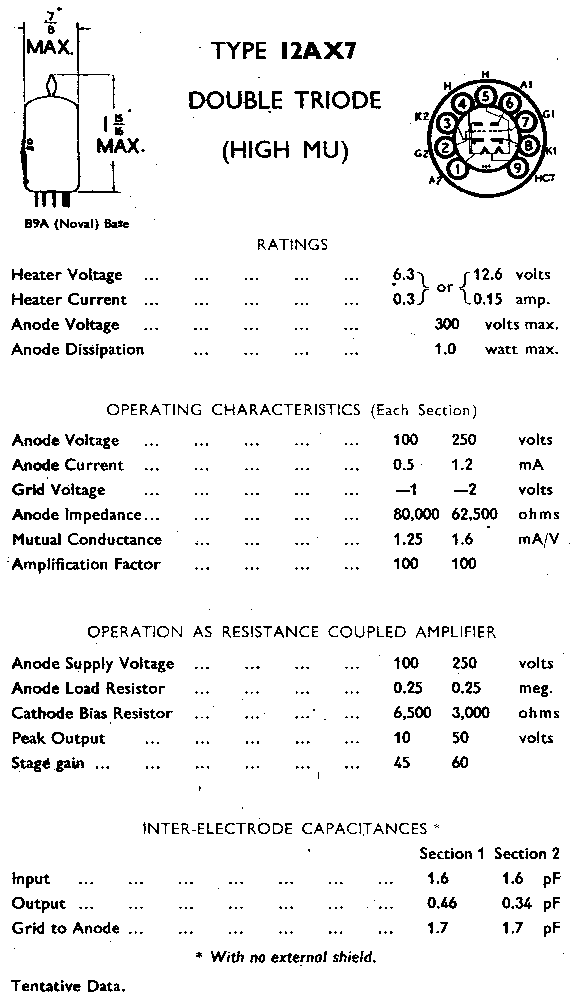

12AU6 12AU7 12AX7 12BA6 12BE6 19T8
