Emitron Valves
and
Cathode Ray Tubes

To view a data sheet click on the relevant title below.
To get back to here from a data sheet, click the Back button.

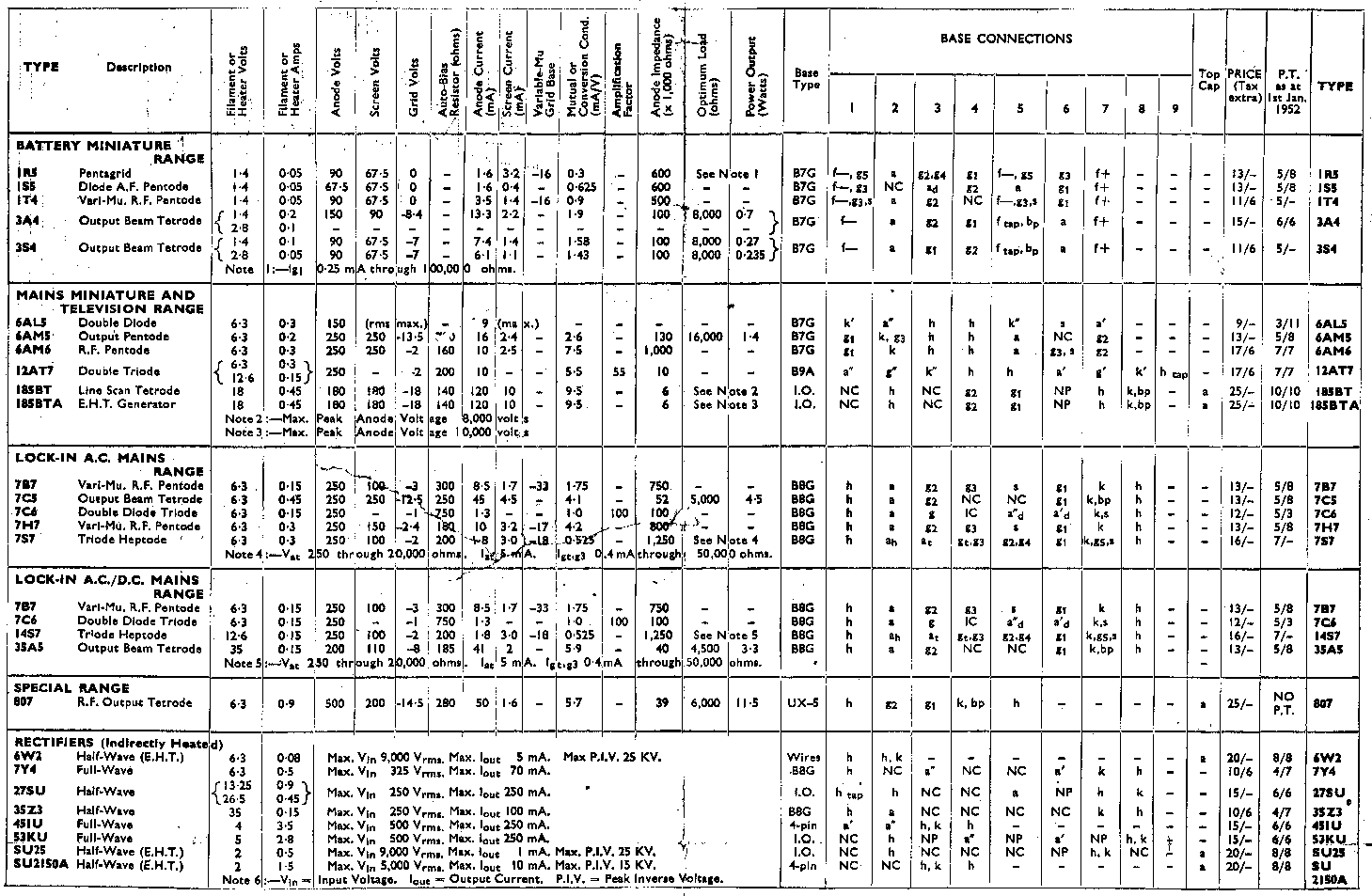

Valve Data

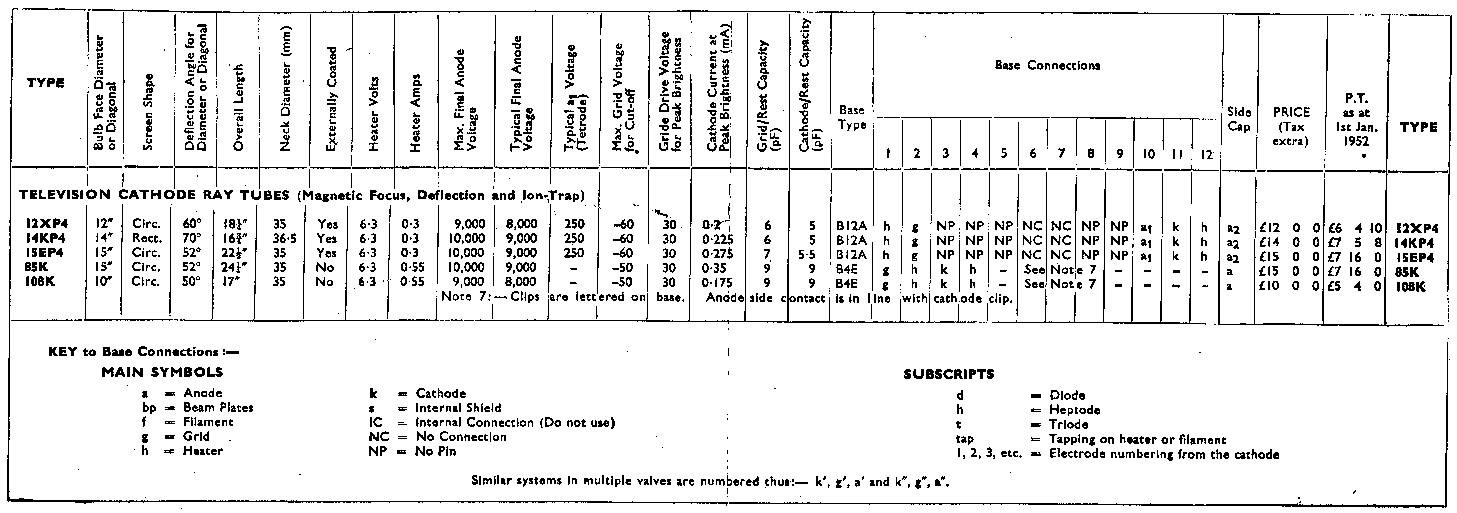

Cathode Ray Tube Data

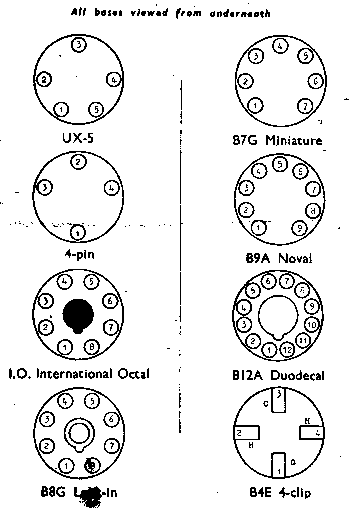

Base Diagrams

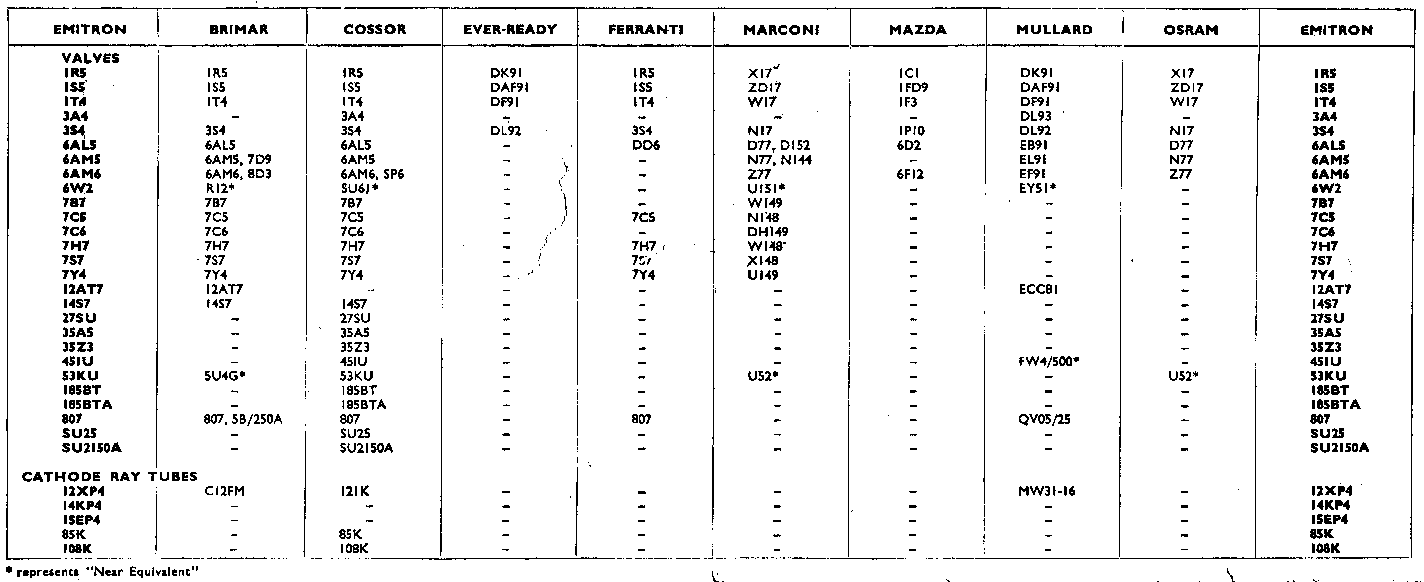

Emitron Equivalents
